Installation of modded IPurifier

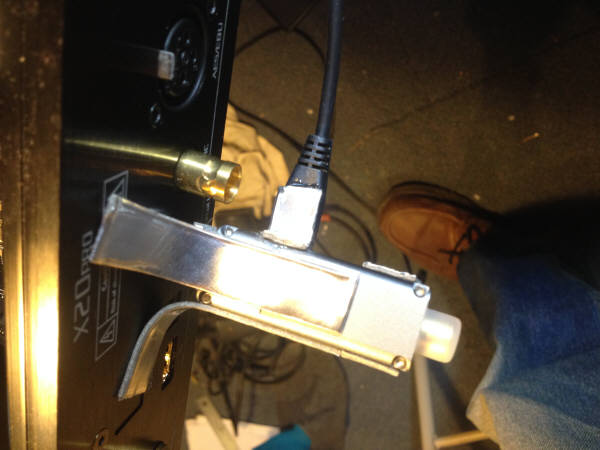

The pic also shows the elimination of the adapter connector (now hardwired) and power connector damped to IFI thang with a piece of supplied damping material (3/8ths x 7/8ths inch)

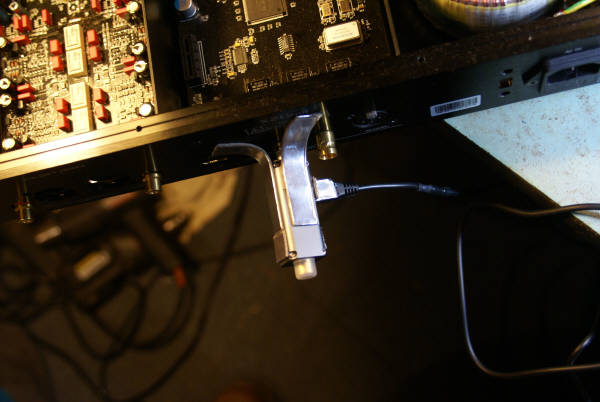

The pic below shows the power cable damped into the body of the IFI thang.  You must use Amazing Goop around the edges of the damping material or it will peel up (as it does not like much to be bent...but is OK with the Amazing Goop added.

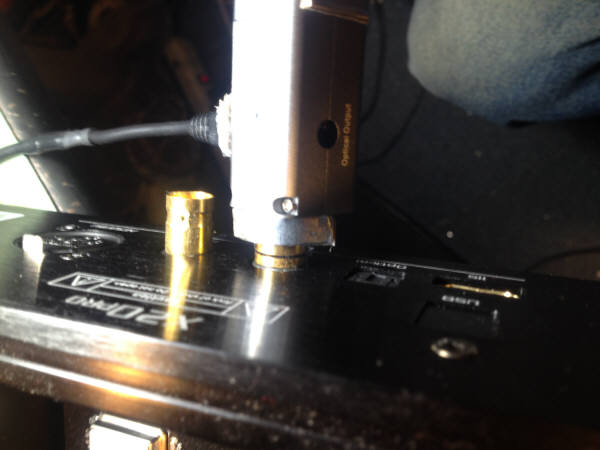

Pic below shows small piece of damping material (one inch by one quarter inch) applied to ground connector going into the DAC.  I also supply another one inch by one quarter inch piece that you can use around the outside barrel of the digital cable plugged into the IFI.

Pics below show damping material applied to sides and connecting it to the DAC (2 one half inch by five eights inch pieces and 2 two and 5/8th  inches by one half inch pieces)
